VOORTMAN V353
ENHANCED OUTPUT, STABILITY, AND EXPANDED CUTTING CAPABILITIES
Introducing the
Voortman V353 Large Format Fiber Laser Cutting Machine—your solution for
high-efficiency, fully autonomous plate processing. Powered by a 15 kW laser,
the V353 consistently delivers precise, high-quality cuts, including bevel cuts
up to 45 degrees, with minimal operator input.

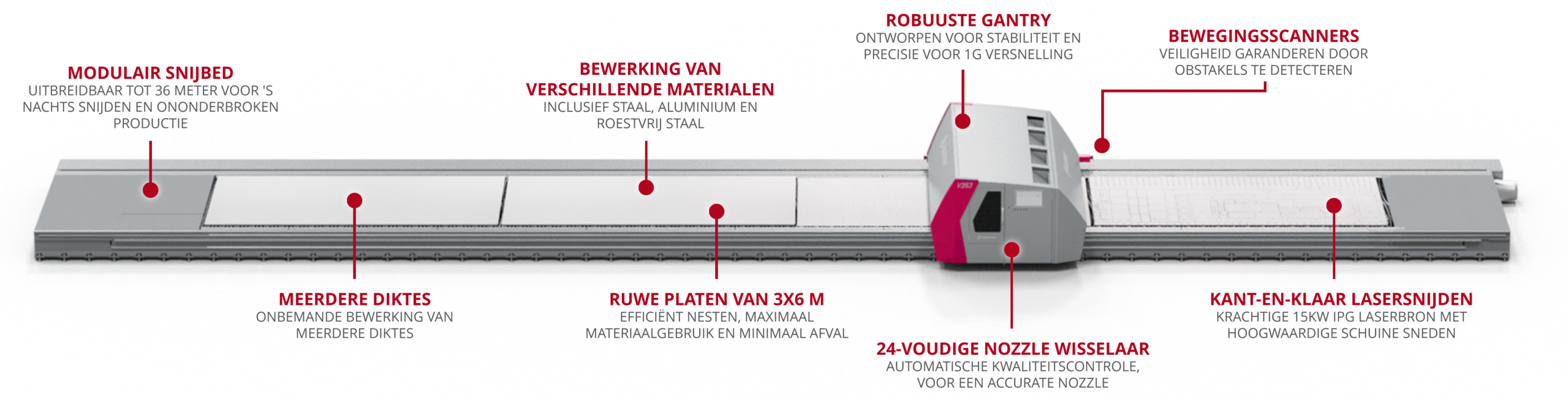

It’s built to handle
plates up to 3 by 6 meters (10 by 20 feet) and can process thicknesses up to
40mm (1.5 inches). The modular design, paired with a large processing area of
up to 36 meters (120 feet), allows for seamless, uninterrupted operation. Plus,
with advanced plate buffering and automatic nozzle changers, the V353 smoothly
transitions between materials and thicknesses, making 24/7 production highly
efficient. Perfect for delivering ready-to-use, finished products with maximum
productivity.
OPTIMIZE PRODUCTION AND REDUCE COSTS
WITH THIS HIGHLY FLEXIBLE XXL PROCESSING MACHINE
- Triple the output: Achieves 3x more output than previous systems, significantly increasing production capacity;
- Labor savings: No high-skilled labor required due to its highly autonomous processing capabilities;
- Reduced logistics: The modular table, up to 36 meters (120 feet), minimizes material handling and logistics;
- Continuous operation: Capable of overnight cutting of multiple thicknesses, ensuring uninterrupted production;
- Maximized material yield: Full stock plates of 3x6 meters (10x20 feet) allow for efficient nesting, reducing waste;
- Lower operating costs: Uses fewer consumables, resulting in reduced overall operational expenses.
Consistent,
high-quality cuts are guaranteed with the Automatic Nozzle Handler.
Operators can easily navigate the machine using intuitive controls and clear visuals.
Weld-ready products straight off the machine, creating bevels up to 45 degrees.
READY-TO-WELD PRODUCTS
ADVANCED BEVEL CUTTING FROM 0 - 45 DEGREES
With the V353, you get weld-ready products straight off the machine, saving time and advancing further processing. Capable of creating bevels up to 45 degrees, it can handle A-, V-, X-, K-, and Y-shaped bevels, perfect for preparing plates for welding. Built for maximum stability, the unit’s sturdy aluminum design, combined with high-end direct drive motors, ensures fast and precise cuts. Even small details like countersunk holes are handled quickly and accurately.
HIGH QUALITY FIBER POWER SOURCE
ENERGY EFFICIENCY OF MORE THAN 40%
Powered by a 15kW
IPG fiber laser, the V353 delivers exceptional energy efficiency of over 40%,
helping reduce operational costs. Compact in design and fully integrated with
VACAM for easy operation, this high-quality laser source ensures the machine
performs at its best, every time.
The Coherent cutting
head allows the laser beam to adapt to the material being processed. This
flexibility means you can easily handle a wide range of materials and
thicknesses with ease. Built to IP65 standards, the cutting head is protected
from contamination, enhancing uptime and reliability.
AUTOMATE YOUR QUALITY
CLEANING, CHANGING, LINEARIZATION AND CHECKING
Consistent, high-quality cuts are guaranteed with the Automatic Nozzle Handler. Featuring 24 nozzle positions and an integrated vision and cleaning system, this automated handler ensures the correct nozzle is always selected for each task, whether it’s straight or beveled. The vision system monitors nozzle condition and laser beam alignment, minimizing the need for manual adjustments.
TAKE FULL CONTROL OF YOUR CUTTING NEEDS
SIZE IS NO LONGER A LIMITATION

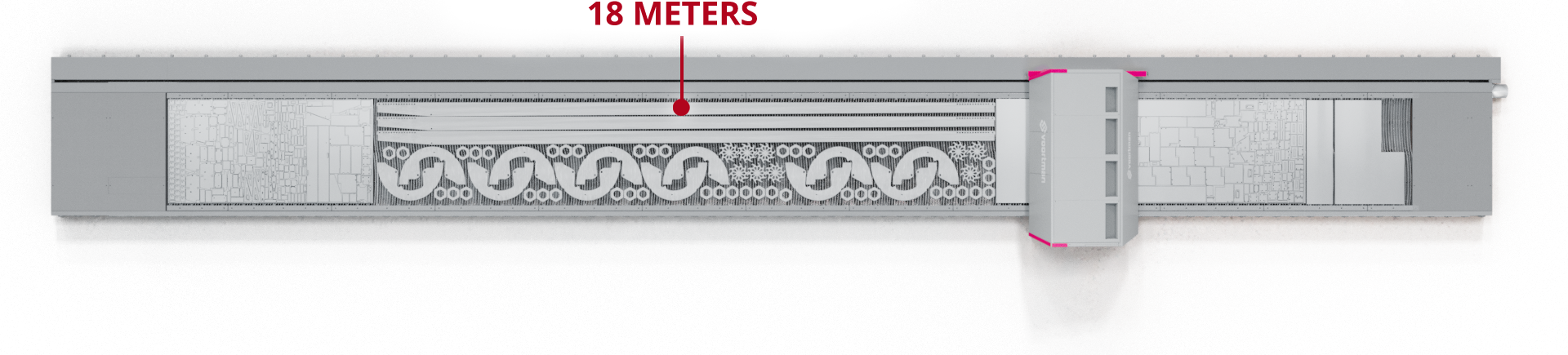

Capable of cutting products as long as your table, which is modular and can be built up to 36 meters (120 feet) in length, it’s perfect for both small and large-scale jobs. For instance, if you're working on long structural components or large sheet materials, the Voortman V353 can easily process products with lengths up to 18 meters (60 feet) and beyond, ensuring you can tackle even the largest projects with precision and ease. No more outsourcing—you can manage everything in-house with the ultimate flexibility to handle any project, no matter how complex.
LOOKING FOR A WAY TO IMPROVE BOTH QUALITY AND EFFICIENCY WHILE KEEPING COSTS LOW?
PRECISION CUTTING, INCREASED OUTPUT, AND LOWER COSTS
The V353 has you covered. Its advanced fiber laser technology delivers clean, precise cuts without needing any additional finishing. It boosts output by cutting large holes in thick plates faster than traditional drilling, eliminating the need for machined holes. Plus, with its ability to maintain perpendicularity on both cutting sides, you can make common cuts that further speed up production. The automated nozzle changer and vision system ensure consistent product quality while reducing the need for operator involvement. With a smaller kerf width and minimal lead-ins or lead-outs, you’ll maximize material usage and significantly lower your cost per part.
EXTEND YOUR PERIODS OF UNMANNED PRODUCTION
AUTOMATICALLY SWITCH BETWEEN THICKNESSES AND NESTINGS DAY AND NIGHT
Reduce logistical costs and manual handling—all with minimal supervision. This machine is built for long, unmanned runs, handling different plate thicknesses effortlessly with its modular cutting bed that extends up to 36 meters (120 feet). It can cut multiple projects in one go, optimizing material usage through efficient nesting. The machine’s ability to run overnight and handle various plate thicknesses without supervision means less downtime and fewer labor requirements.
AUTOMATIC BUFFERING AND MEASURING FOR SMOOTH, OVERNIGHT OPERATIONS
Automatic buffering and measuring make it so much easier to run longer, even overnight, with minimal manual interference. It allows operators to set up multiple jobs on the table at once, and the system provides an overview of the required nozzles so the machine can handle everything on its own. With automatic rotation and plate alignment, nestings are adjusted based on how the plate is loaded—no need to pick it up and reposition it. Plates are measured directly on the cutting deck. Simply enter the approximate position, and the machine does the rest. Even better, operators can add new plates and new jobs during production without stopping the process.
1.
NEST

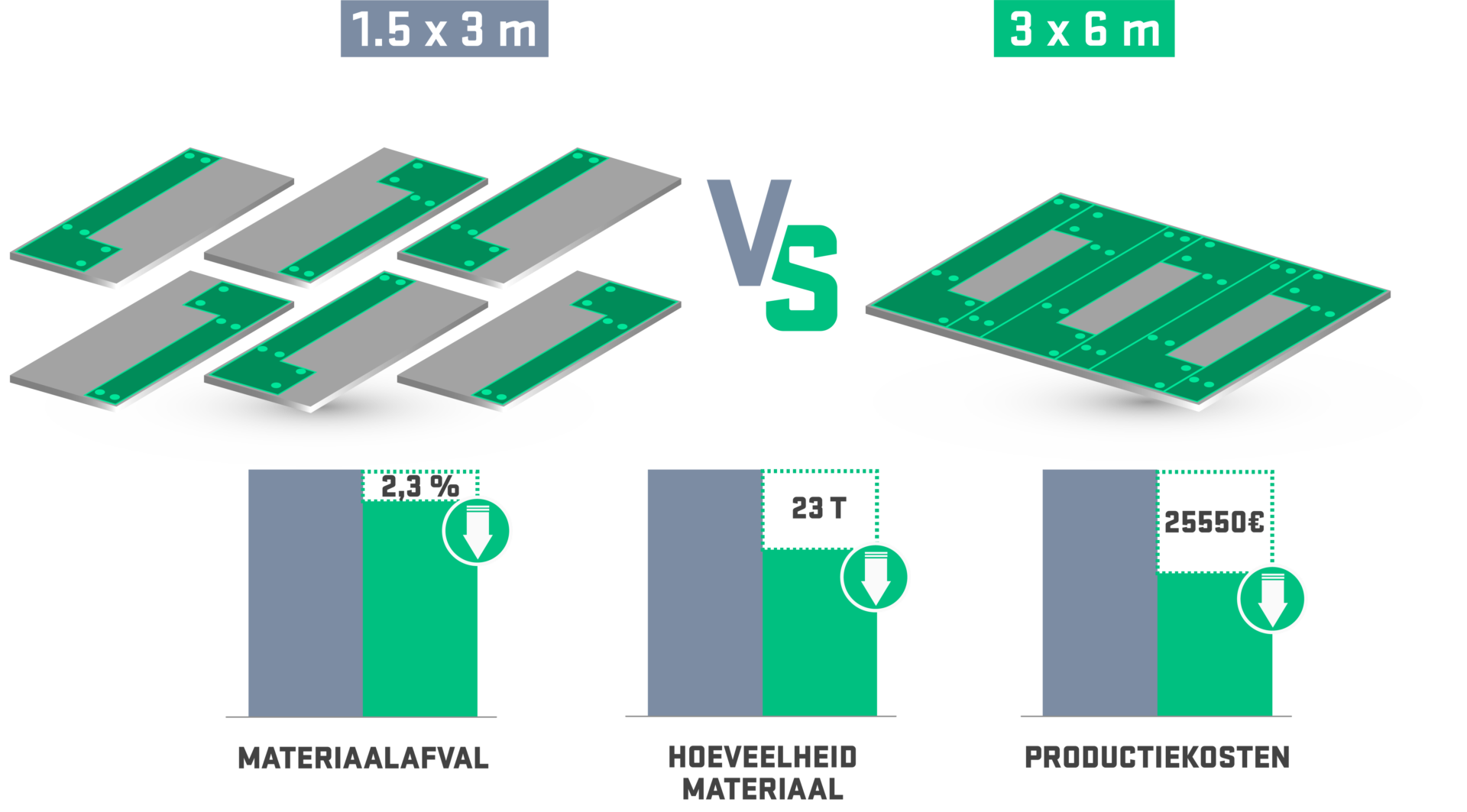

Efficient nesting on 3x6 meter (10'x20') plates not only maximizes material usage but also significantly reduces scrap. The automated, paperless work preparation process ensures that nesting layouts are optimized, minimizing waste and manual intervention. You can oversee all jobs and timings across multiple machines in one view. Programs are easily assigned and balanced automatically with a single click, or manually adjusted by dragging and dropping between machines or from the queue.
2.
SCHEDULE
Show your operators exactly what to run next. Works preparation can schedule nestings seamlessly, and the system even shows if the job can be finished in the planned time by giving expected production durations. It also checks if all the consumables are ready, ensuring the operator doesn't run into issues during the job. Especially useful during night shifts when the office isn’t available for support.
3.
MEASURE & BUFFER
Plate Buffering makes life easier by letting operators set up multiple jobs on the table at once. The Buffer Overview shows exactly what nozzles are needed, so as long as everything's available, the machine can run without needing any manual intervention. With the Rotation and Plate Alignment features, operators can rotate the nesting right in the software, based on how the plate is loaded—no need to pick it up and adjust it again. Plus, the Automatic Measurement feature quickly figures out the plate’s exact position, so you don’t have to stop the process to add new jobs to the buffer.
4.
GO!
The V353 ensures smooth production with its user-friendly software and quick menu for fast actions. Operators can easily navigate intuitive controls, and Voortman’s pre-set cutting parameters allow for easy, repeatable cuts with automatic selection and simple adjustments for any material. Designed for long, unmanned runs, the V353 minimizes the need for constant supervision.
WE ENSURE SAFE UNLOADING WHILE MAINTAINING CONTINUOUS PROCESSING
The V353 prioritizes safety during operation, especially when loading and unloading sheets while processing multiple buffered jobs. Multiple safety scanners continuously monitor the surroundings and are able to detect objects like individuals, pallets, and lifting equipment both in front of and behind the housing, as well as above the cutting deck, preventing potential collisions.
The system divides the scanned areas into warning and stop zones: entering a warning zone triggers an alert to the operator, while entering a stop zone halts the machine completely, interrupting the laser beam. Once the area is cleared, the machine automatically resets and resumes production safely. This system allows for high-speed operation, even with 1G gantry acceleration, while keeping the workspace secure and risk-free.
VOORTMAN MANUFACTURING
HIGH-QUALITY CNC SOLUTIONS BUILT IN-HOUSE
At Voortman, we take pride in being a manufacturer of high-quality CNC steel processing machines. Our commitment to forward-thinking, automation, and quality is reflected in everything we do, especially when it comes to our plate processing machines and solutions. From the in-house production of robust machine frames, cutting tables, and cabinets to the assembly and testing of each machine, we maintain full control to deliver consistent, high-quality products.
Having our own manufacturing plant allows us to identify with your challenges and puts us in a position to provide rapid solutions. Using our own plate processing machines to build these systems, we ensure efficiency and precision at every step.
ACHIEVING FULL AUTOMATION
HOW OUR SOFTWARE MAXIMIZES UPTIME AND EFFICIENCY
We don’t stop at
hardware—our in-house developed software pushes the boundaries of automation,
focusing on interaction, machine feedback, and operator ease to maximize uptime
and efficiency.
Our software applications are built on decades of market knowledge and user experience from the field, ensuring they not only automate and optimize production flows today but continue to evolve. We regularly enhance performance and increase automation to reduce manual labor costs. With each software update, your Voortman machines benefit from greater efficiency and smarter operations. Thanks to our in-house software development, we can quickly push out over-the-air updates, ensuring your machinery maintains peak performance throughout its lifetime.
MEET DIGI-EVI
YOUR GO-TO DIGITAL ASSISTANT FOR MACHINE MONITORING AND INSIGHTS
Whether the machine is on, off, running, or idle, DIGI-EVI keeps you informed. With seamless connectivity, DIGI-EVI ensures you're always in the loop through the DIGI-EVI app on your mobile phone, tablet, or the DIGI-EVI webpage on your laptop.
DIGI-EVI's instant notifications alert you if the machine stops or isn't running correctly, making it as convenient as instant messaging. By closely monitoring the machine, DIGI-EVI aims to:
- Increase output
- Prevent downtime
- Improve production efficiency
- Free operators from constant supervision
Specifications Voortman V353
Voortman V353 | ||
---|---|---|
Working width straight | feet | 10 |
Working length straight | feet | 40 - 120 |
Power laser source | kw | 15 |
Working width bevel | feet | 10 |
Working length bevel | feet | 40 - 120 |
Nozzle changer | positions | 24 |
Maximum positioning speed x-y (interpolated) | m/min | 140 |
Maximum positioning speed z | m/min | 50 |
Maximum acceleration | G | 1.0 |
Maximal weight of plate | LB/FT2 | 125 |
Maximum cutting thickness | inch | 1 – 1/2 |
