V342
Entry-level laser cutting for plate processing
- Capable of handling a wide range of materials and sizes
- Efficiently produces production- ready parts
- Robust design that ensures quality while maintaining productivity

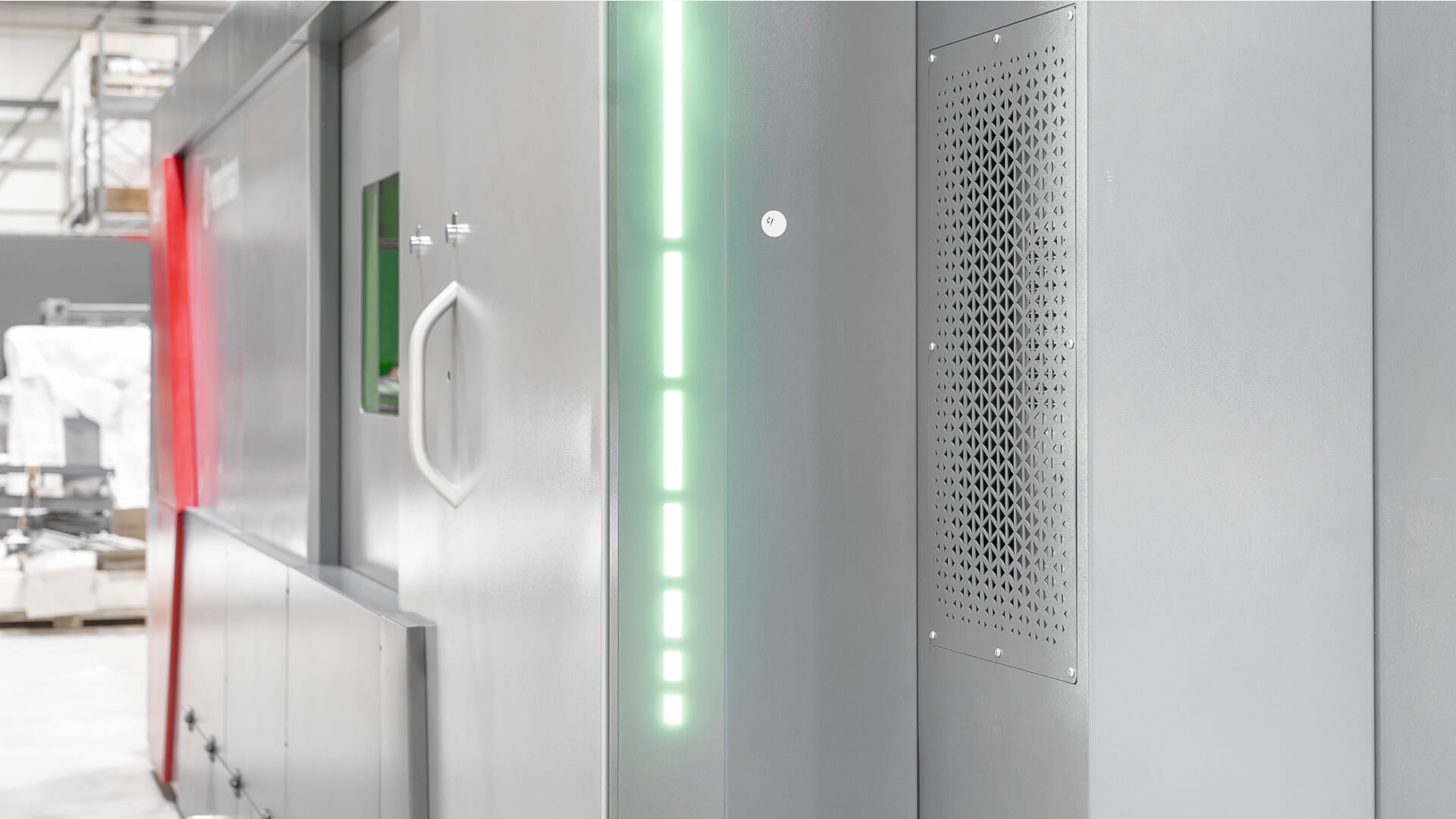

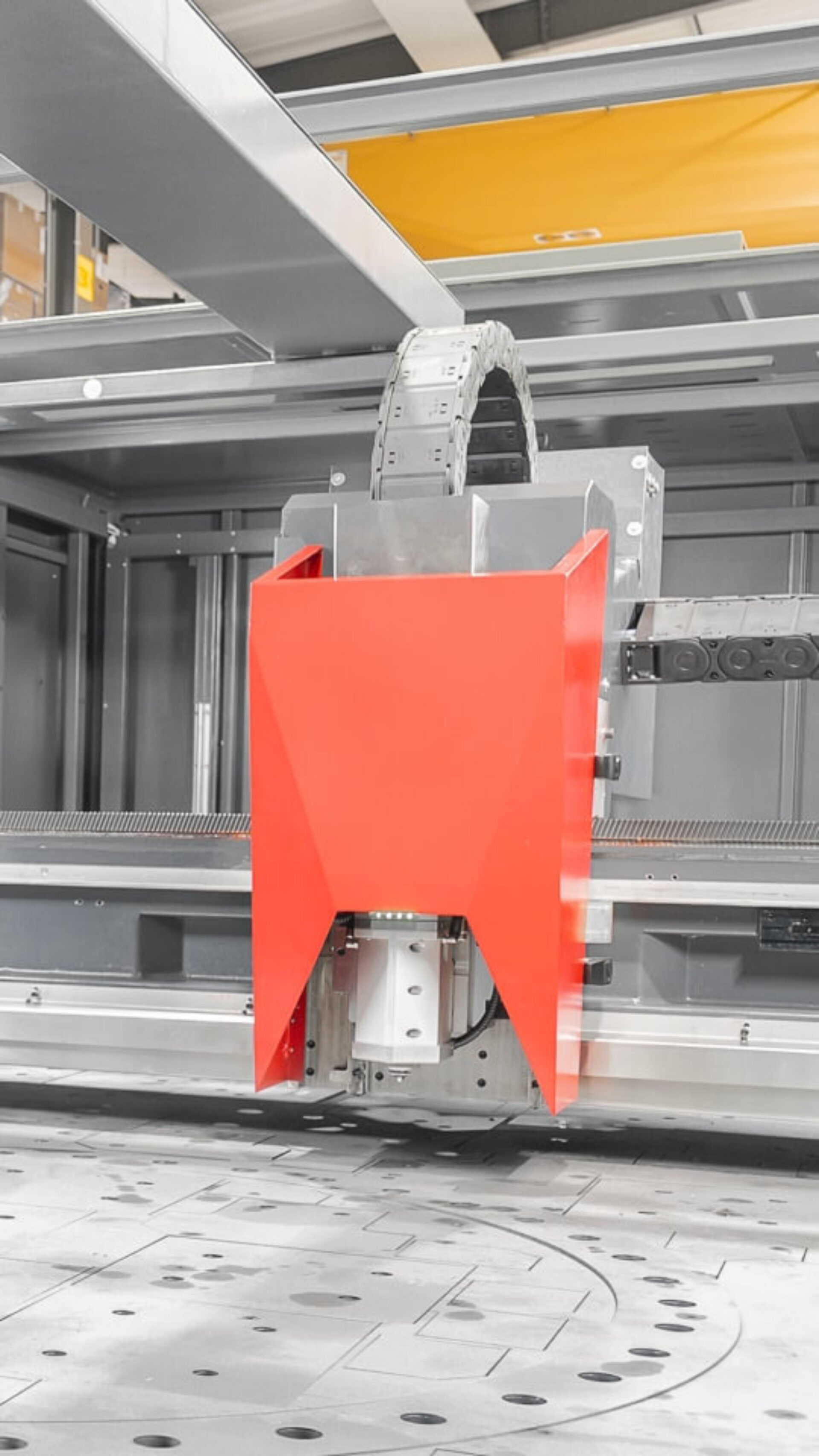

- High quality processing with high-end components
INTRODUCTION

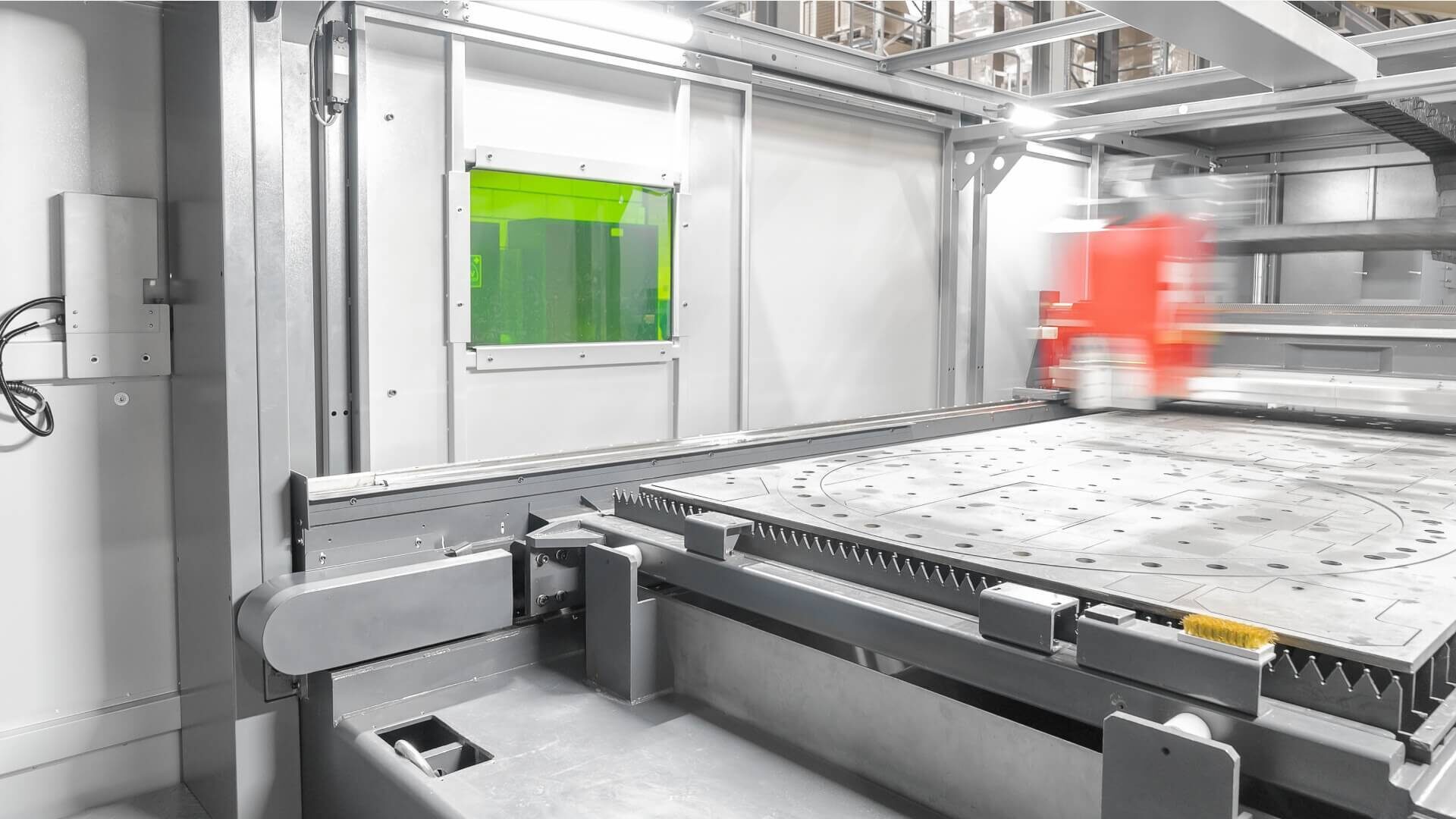

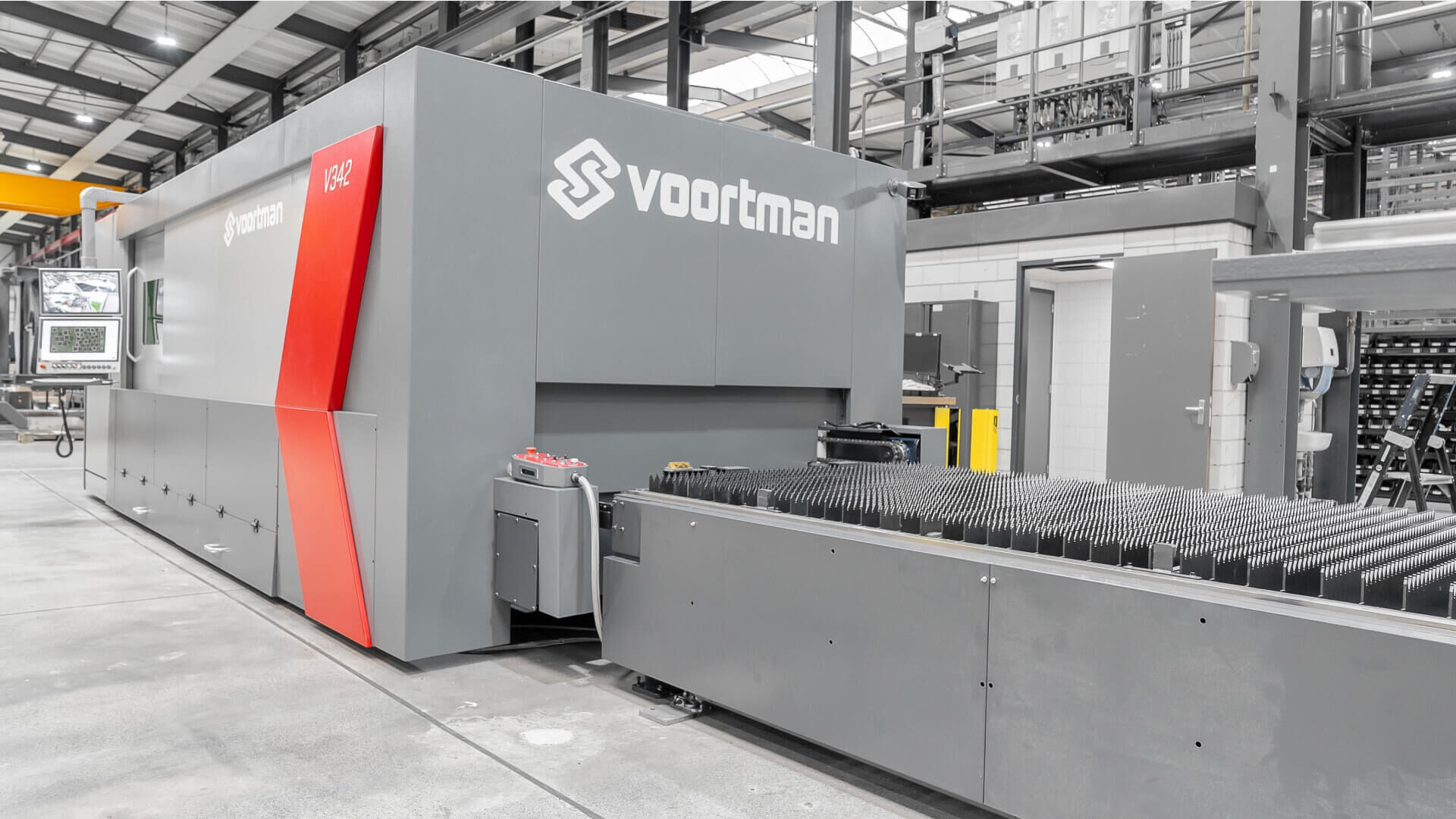

The Voortman V342 is an efficient fiber laser cutting system designed to streamline plate production. With modern technology and an optimized mechanical design, the V342 delivers solid performance and versatility, making it a great choice for various cutting applications across industries. It’s built for consistent results, offering the reliability, flexibility, and output needed to keep production running smoothly.

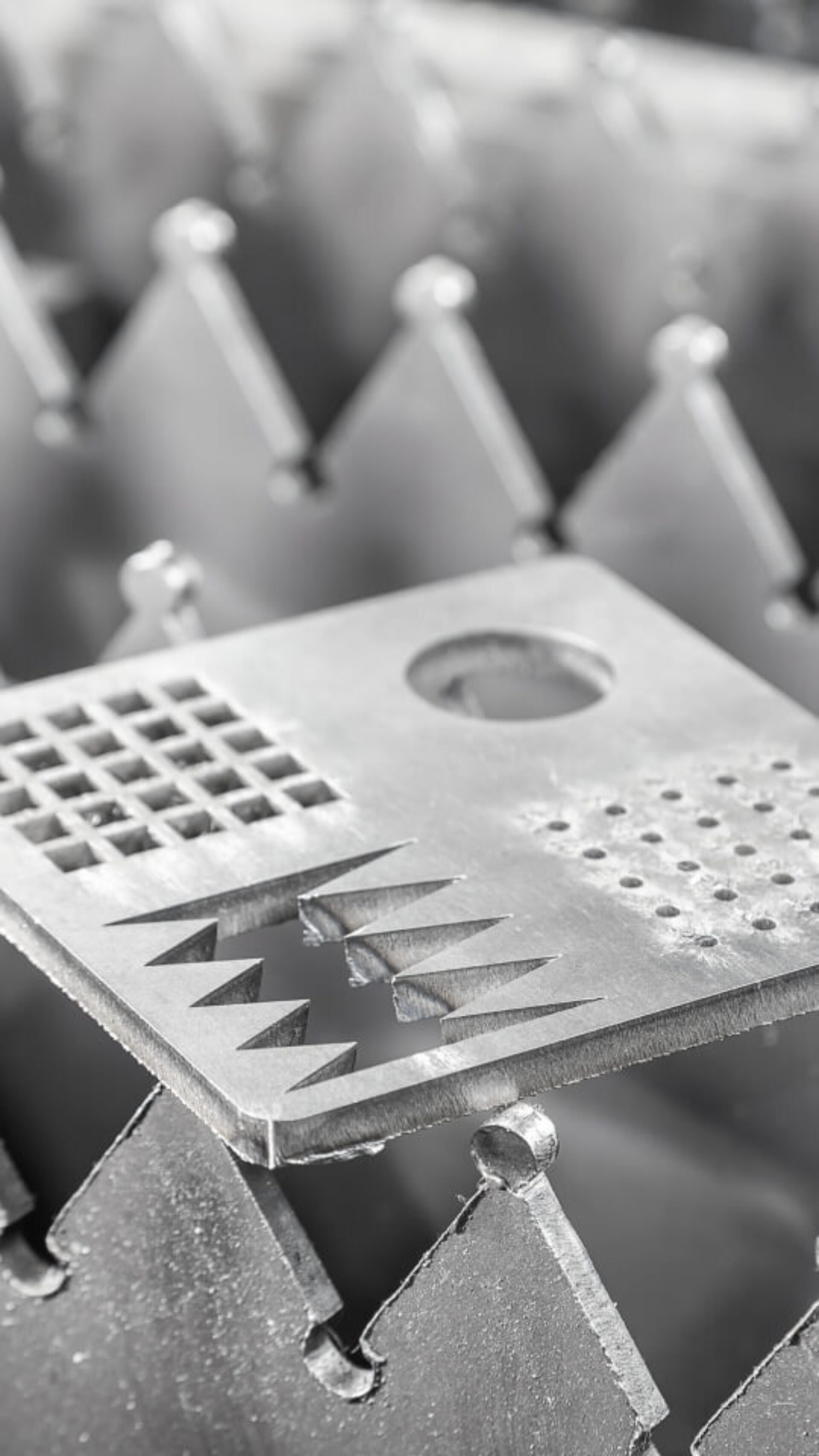

HIGH-QUALITY
PROCESSING
OPTIMIZED
MECHANICAL DESIGN
READY
PRODUCTS
COMPETITIVELY PRICED
WITH VOORTMAN'S EXCELLENT SERVICE
With this fiber laser cutting machine, Voortman adds a baseline model to its portfolio. The machine is an entry level competitively priced machine that is fully included in Voortman’s excellent service. This combination makes this machine a very interesting option to experience the benefits of a partnership with Voortman.
HIGH-QUALITY PROCESSING
HARDWARE COMPONENTS
The V342 is powered by a high-performance fiber laser source with options ranging from 12 kW to 30 kW, enabling efficient cutting of diverse materials. A specialized cutting head incorporates real-time temperature and focus control, optimizing cutting quality and protecting the lens. The innovative electric drive system ensures precise motion control and stability during high-speed operations, while the integrated water cooling system maintains optimal temperatures for reliable performance. Additionally, the user-friendly CNC control system facilitates realtime adjustments and advanced features, enhancing overall efficiency and productivity.
CUTTING
HEAD

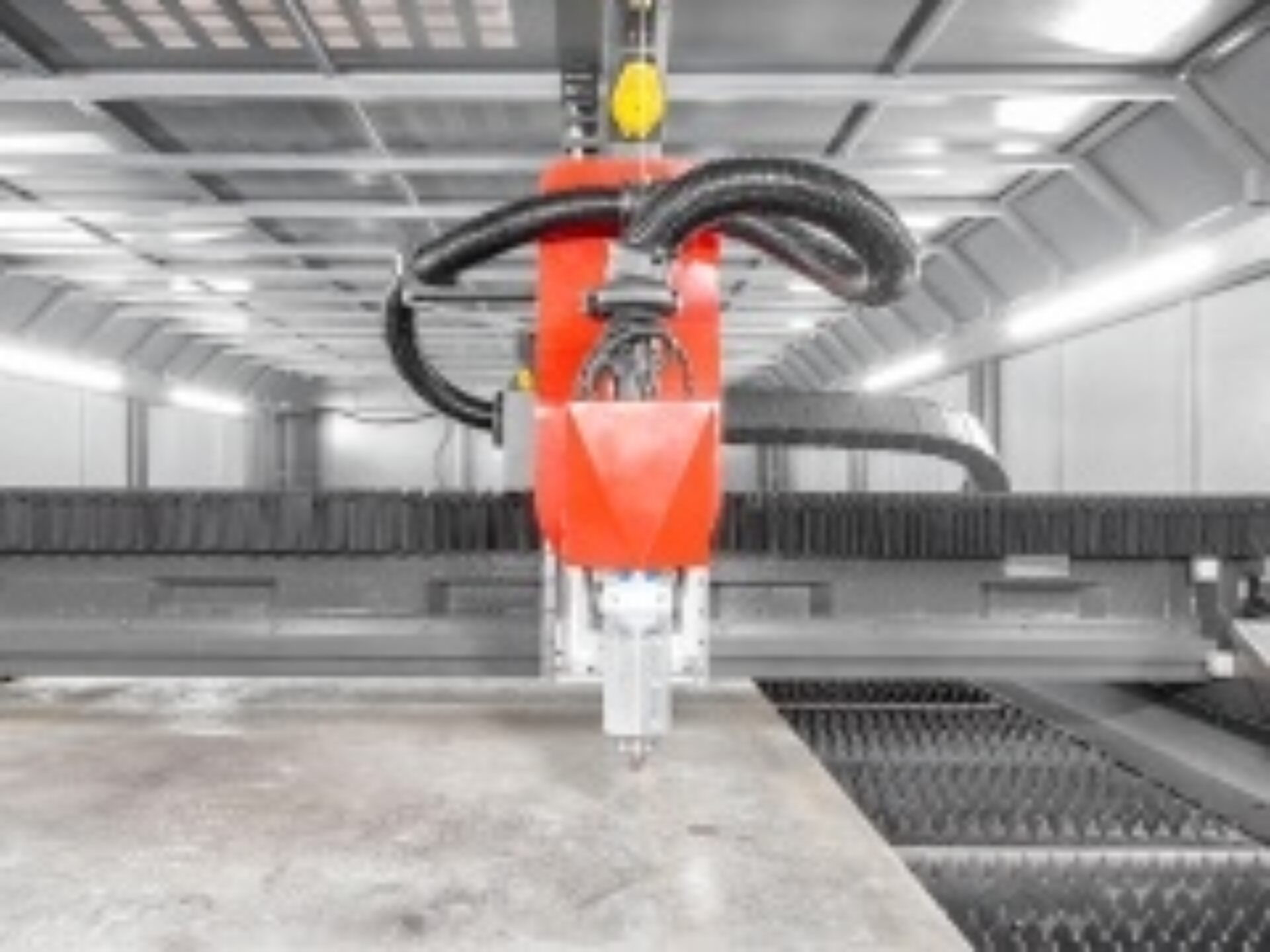

The cutting head is pivotal for superior performance and precision. Its unique, co-developed design strategically minimizes energy density in the laser focus, ensuring a more vertical cutting gap, which reduces workpiece taper and optimizes cutting gas flow for a low-pressure cutting effect. Equipped with real-time temperature and focus control, the cutting head allows for continuous monitoring and compensation to maintain high cutting quality. This advanced capability supports various cutting techniques, enhancing versatility and delivering exceptional results across a wide range of materials and thicknesses.
LASER
SOURCE
The laser source is a central component of the Voortman V342 and provides great cutting performance in a variety of materials. With high power options reaching up to 30 kW, the laser source enables efficient cutting of various materials, including mild steel, stainless steel, and aluminum. This allows to effectively handle a wide range of material thicknesses, making it a versatile solution that responds to your specific needs and requirements for diverse cutting applications.
MIXED
GAS CUTTING
The integration of mixed gas cutting technology enhances operational efficiency by utilizing a proprietary gas mixture, eliminating the need for additional gas mixing devices. This feature allows for significantly increased cutting speeds – up to three to six times faster than traditional methods – while ensuring high-quality results when processing mild steel. By optimizing gas flow and cutting quality, mixed gas cutting reduces costs and streamlines production processes. This advanced capability gives flexibility in your processing, making it beneficial for high-volume applications where time and precision are critical.
BEVEL
CUTTING
The (bevel) cutting capability of the V342 offers incredible flexibility, handling thicknesses from 3mm to 50mm with ease. The bevel cutting head can produce weld preparations of up to 45 degrees in a variety of common shape, making it a versatile choice for any project. The laser sensor comes with an impressive calibration accuracy. It’s standard nozzle, paired with the nozzle compensation mode, requires just one calibration, eliminating the need to recalibrate the focus every time the nozzle is changed.
HEIGHT
CONTROL
An advanced height control system ensures precise cutting by automatically adjusting the laser’s focal point relative to the workpiece. This feature maintains optimal distance throughout the cutting process, compensating for variations in material thickness and surface irregularities. By effectively managing the height of the cutting head, it enhances cutting quality, reduces the risk of damage to the workpiece, and avoids collisions with the cutting head.
PROCESS WIDE
VARIETY OF MATERIALS
The V342 is designed to process a wide variety of materials with exceptional efficiency, powered by a high power fiber laser source of 30 kW. This high-performance fiber laser system and its components, enables precise cutting of materials such as mild steel, stainless steel, aluminum, accommodating various thicknesses and shapes. The robust laser source allows for clean, efficient cuts while minimizing kerf and waste, enhancing overall productivity. By effectively handling diverse materials, different products can be produced seamlessly.
MECHANICAL DESIGN
OPTIMIZATION, EFFICIENCY & PRECISION
GANTRY
DESIGN
The gantry design balances sturdiness and lightweight construction, optimizing cutting performance. Its robust design provides the stability needed for high dynamic fiber laser cutting, while the lightweight structure facilitates quick movements without sacrificing quality. This combination enhances operational efficiency and ensures high-quality results, even in demanding conditions.
SOLID
WORKTOP
Our worktop provides a solid foundation for machining operations, ensuring maximum stability and precision. By reducing contact points with the bed, it minimizes deformation under heavy loads, which is crucial for consistent accuracy throughout extended use. The durable construction enhances overall equipment performance and lifespan while reducing operational costs.
CUTTING DECK
SHUTTING TABLE
The hydraulic exchangeable cutting deck allows for quick material changes, minimizing downtime between jobs. Its robust stability ensures that workpieces are securely in place, which is critical for accurate processing. Designed to support substantial weights and various material thicknesses, this shuttle table accommodates large-format sheets without compromising performance.
EXCHANGE
TABLE
Engineered for speed and efficiency, the exchange table enables quick material transitions to minimize downtime. Small waste falls directly through the table into designated bins, maintaining a clean workspace. The trays feature a specialized graphite coating that prevents damage during the cutting process, supporting productivity while reducing operational costs.
SPEED OF
CHANGE
The exchange table’s rapid speed of change is designed for maximum efficiency, allowing you to switch between cutting jobs quickly. This minimizes downtime and enables a continuous workflow, with transitions between jobs taking just seconds.
DIFFERENT
FORMATS AVAILABLE
The V342 comes with an impressive table range of 1.500x3.000 mm – 3.000x6.000 mm, providing space to handle a wide variety of material sizes. With available table sizes from 1500x3000mm (5x10ft) to 3000x6000mm (10x20ft). The Voortman V342 meets your needs, whether you’re producing small components or large products. A smaller working area is also possible to meet your production requirements and footprint availability.
SIMPLIFIED USABILITY

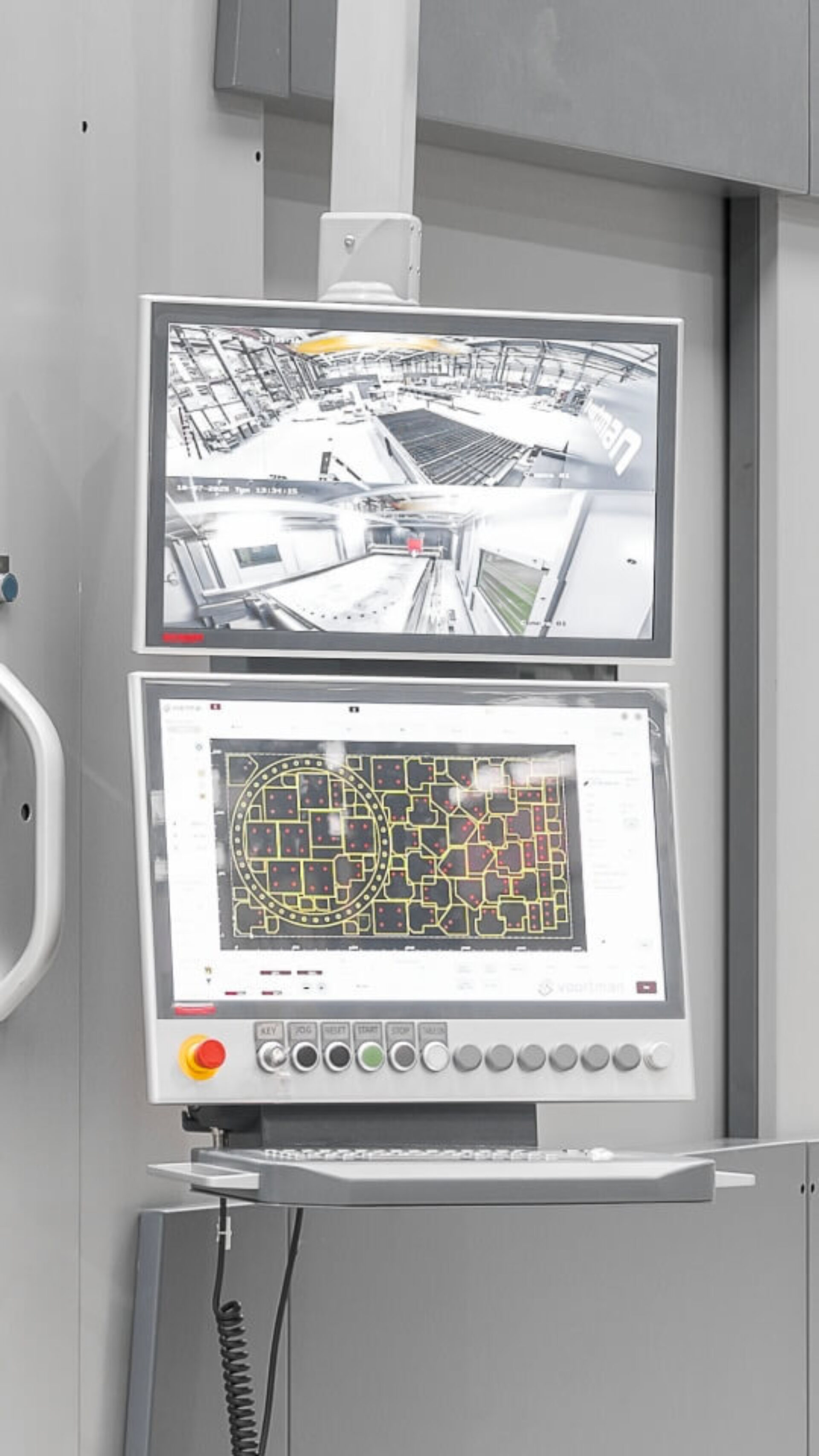

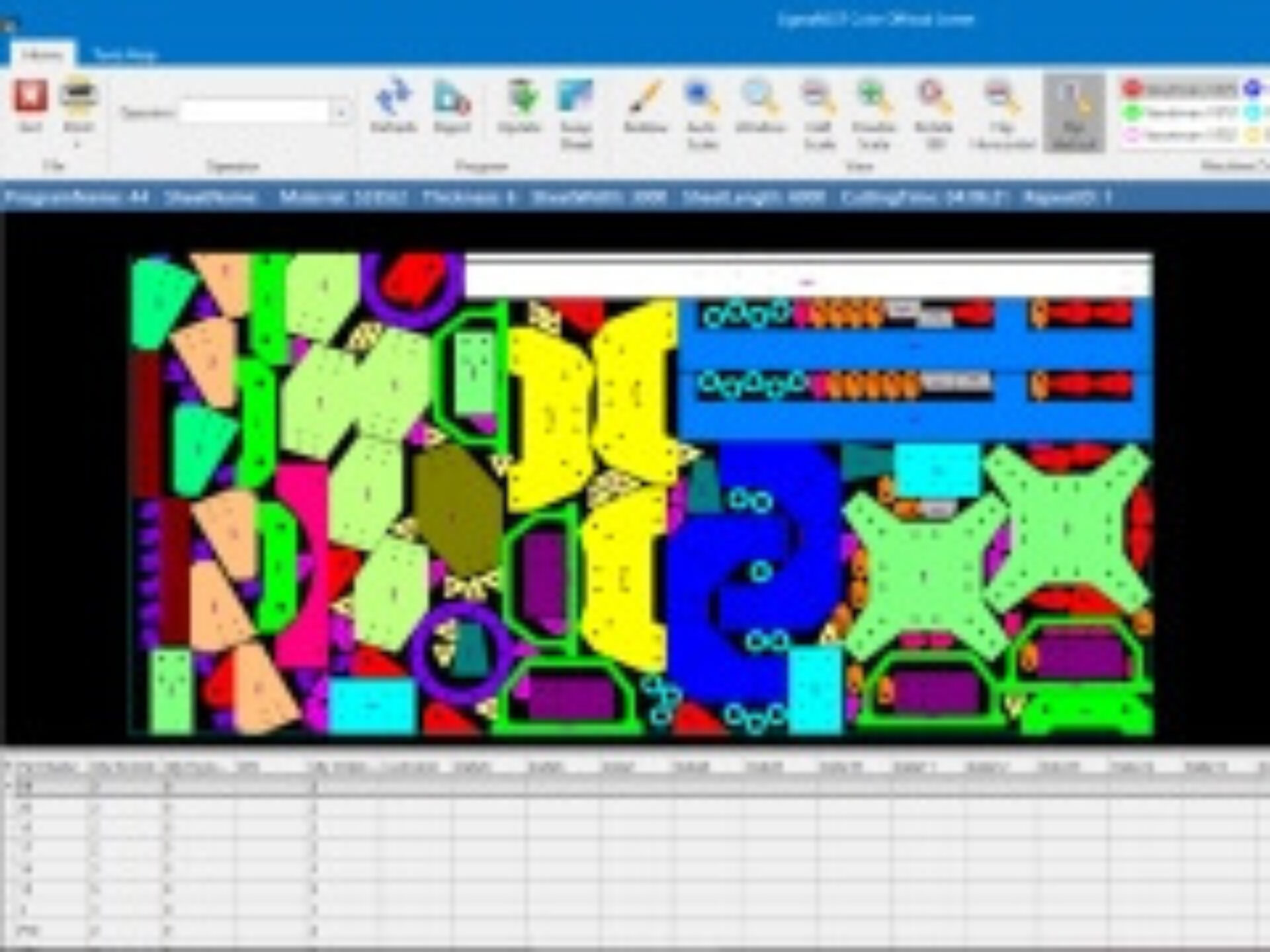

SOFTWARE & AUTOMATION
INTEGRATED CUTTING
DATABASE
The integrated cutting database provides essential parameters for optimal cutting performance with various components. It offers a comprehensive set of predefined settings, enabling you to quickly and accurately begin cutting tasks. This database ensures that each cutting operation is executed with precision and efficiency. By streamlining the setup process, the cutting database enhances productivity and minimizes material waste, allowing for reliable results across a range of applications. Ultimately, it empowers you to achieve consistent quality while saving valuable time.
RESUME
FUNCTIONALITY
The resume functionality enhances operational efficiency by allowing the cutting process to continue seamlessly after an interruption, such as a power failure or material deviation. This feature ensures that cutting resumes with ease, minimizing waste and reducing the need for rework. It helps maintain high productivity levels and consistent quality in production runs. Particularly valuable in high-volume manufacturing environments, where downtime can significantly impact overall output, this capability ensures that every cut meets the same precision standards.
AUTOMATIC GAS SELECTION
& FAST GAS CHANGE
The automatic gas selection and fast gas change features work in tandem to optimize the cutting process. The system automatically selects the appropriate cutting gas based on job parameters, ensuring optimal cutting quality and efficiency for various materials and thicknesses. Additionally, the fast gas change capability minimizes downtime by allowing quick transitions between cutting tasks without manual intervention. This combination not only enhances productivity but also reduces the potential for errors, creating a more efficient and flexible production environment.
| Voortman V342 Baseline | |||
|---|---|---|---|
| V342-3015 | V342-6030 | ||
| Working Range X-axis | 10 ft | 20 ft | |
| Working Range Y-axis | 5 ft | 10 ft | |
| Laser Power | 12-60 kW | 12-60 kW | |
| Positioning Speed | 200 m/min | 200 m/min | |
| Positioning Accuracy | +/- 0,06 mm | +/- 0,06 mm | |
| Repetitive Accuracy | +/- 0,02 mm | +/- 0,02 mm | |
| Working Area Max Weight | 6,225 lbs | 25,000 lbs | |
| Working Area Acceleration | 4 G | 2,2 G | |
| Working Area Bevel Cutting | N/A | 8 x 20 ft | |
